OPSENS FIBRE OPTIC – PRESSURE & TEMPERATURE

Systems for small/medium animals – affordable, accurate, and immune to electrical interference

scientist opsens catheter

Unlike others, Opsens records from the very tip

While conventional catheters for animal-use may claim ‘tip’ sensing, transducers are generally positioned behind the tip, causing data offset and slower response.

Opsens fibre optic pressure catheters and temperature probes deliver true in-vivo pressure and temperature data from the very tip for a better signal.

CATHETER AFFORDABILTY EXTENDS OPPORTUNITIES

Opsens catheters combine precision with affordability, allowing research teams to maximise budgets without compromising quality.

ALSO FOR MRI ENVIRONMENTS

Using robust and reliable WLPI technology, the pressure catheters are MRI-compatible and immune to electrical interference, They deliver fast, reliable data in every research environment.

COMPLETE SYSTEM

Connect catheters and temperature probes to Opsens signal conditioners to view on the single or double channel monitor. Data streams directly to data acquisition software systems such as PowerLab with LabChart Pro.

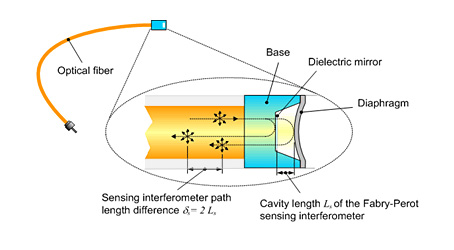

Catheter tip

Detailed look at the Catheter Tip

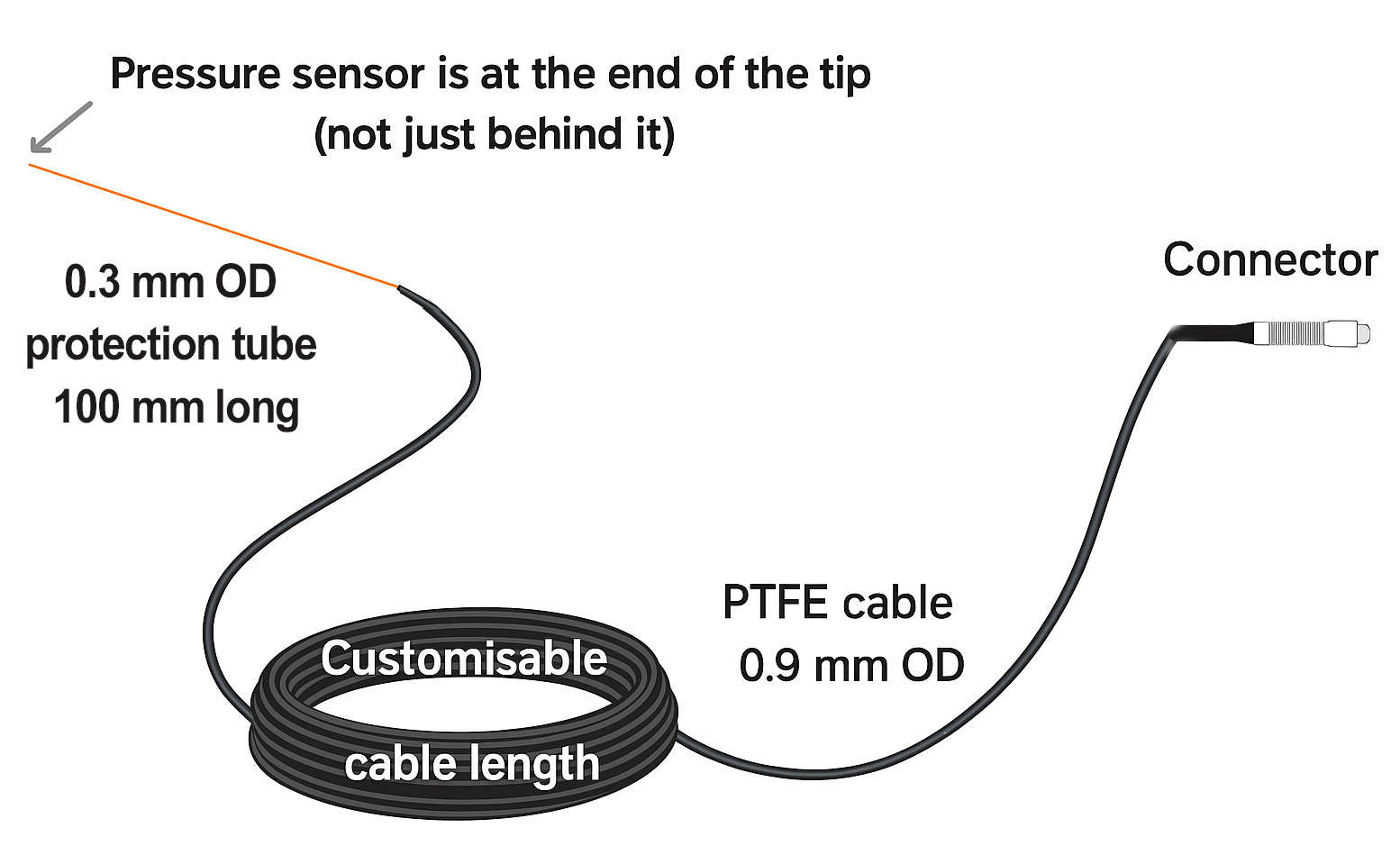

opsens cable

Opsens pressure catheter diagram





PRESSURE CATHETERS FOR SMALL AND MEDIUM SIZED ANIMALS

1 FRENCH – MICE
(0.33 mm outer diameter)

Suited for small-to-medium animals (rats, guinea pigs) balancing flexibility and durability.

  • Pressure range: −50 to +300 mmHg
  • Tip size 310 µm
  • Cable length: 1.5 m (customisable up to 10 m)
  • Connector: SC for simple, reliable connection
Applications
  • Physiological pressure monitoring: Intravascular, urodynamic, intracranial, intrauterine, and cardiac assist

  • Pressure measurement under electro-surgery, MRI and MW/RF related practices

2 FRENCH – RATS, RABBITS, PIGS
(0.61 mm outer diameter)

Designed for larger species (rats, rabbits and beyond), featuring a PEEK coating instead of polyamide for added toughness and rigidity.

  • Pressure range: −50 to +300 mmHg
  • Tip size: 610 µm
  • Cable length: 1.5 m (customisable up to 10 m)
  • Connector: SC for simple, reliable connection
Applications
  • Physiological pressure monitoring: Intravascular, urodynamic, intracranial, intrauterine, and cardiac assist

  • Pressure measurement under electro-surgery, MRI and MW/RF related practices

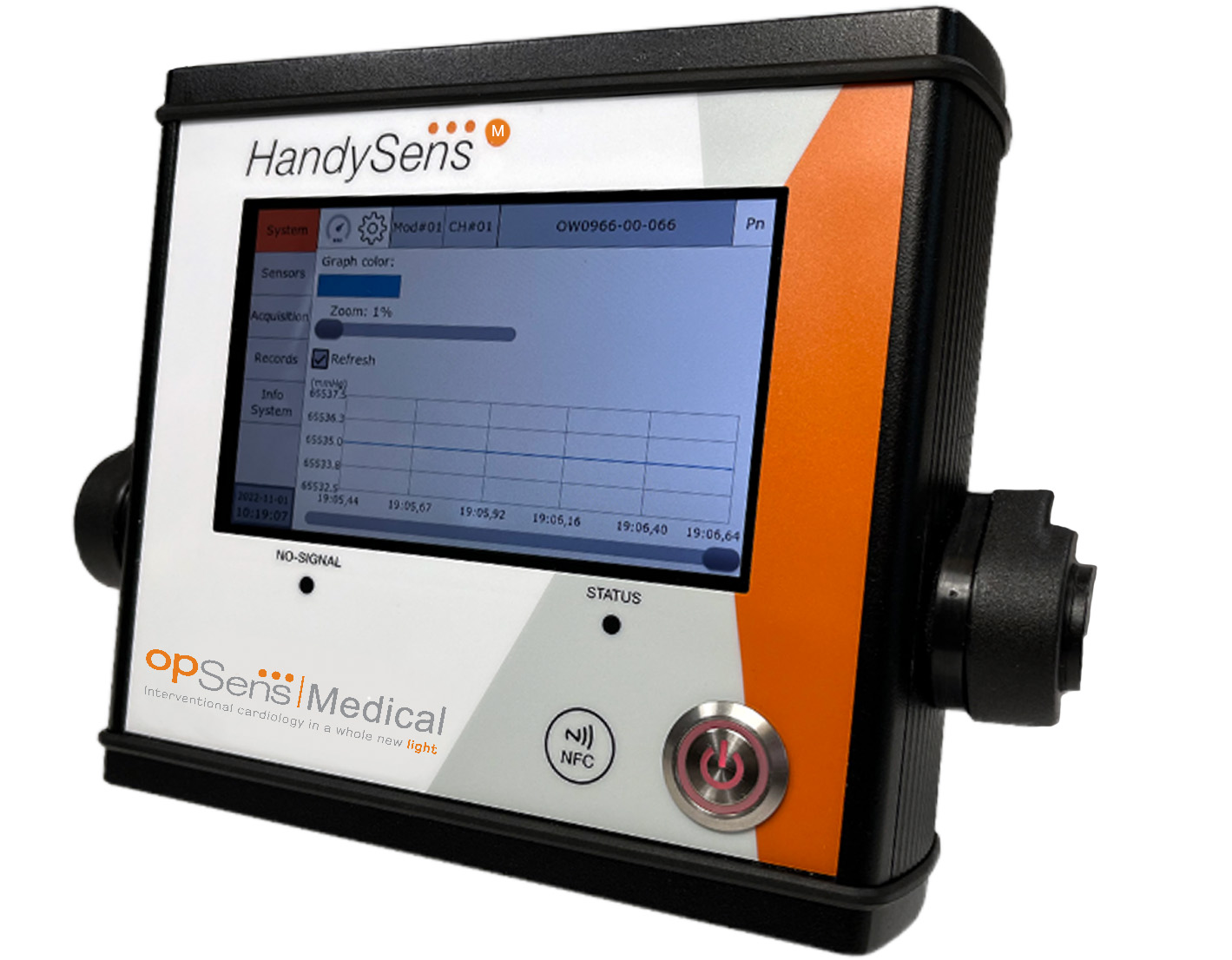

HandySens M Single Channel Signal Conditioner for Pressure

A single-channel, high-performance signal conditioner designed for use with affordable Opsens’ fibre optic catheters.

Ideal for pressure measurements, it delivers precision and versatility in a compact, rugged form.

Key Features

  • Compact and battery-operated for portability

  • 5.0” touchscreen for easy control and real-time data display

  • Sampling rate: up to 250 Hz

  • Ethernet 10/100 Base-T and USB interface

  • 32 GB storage for remote data logging

  • Supports Opsens pressure catheters

Two channel option

A two channel signal conditioner without touch display is available on request.

HandySensM

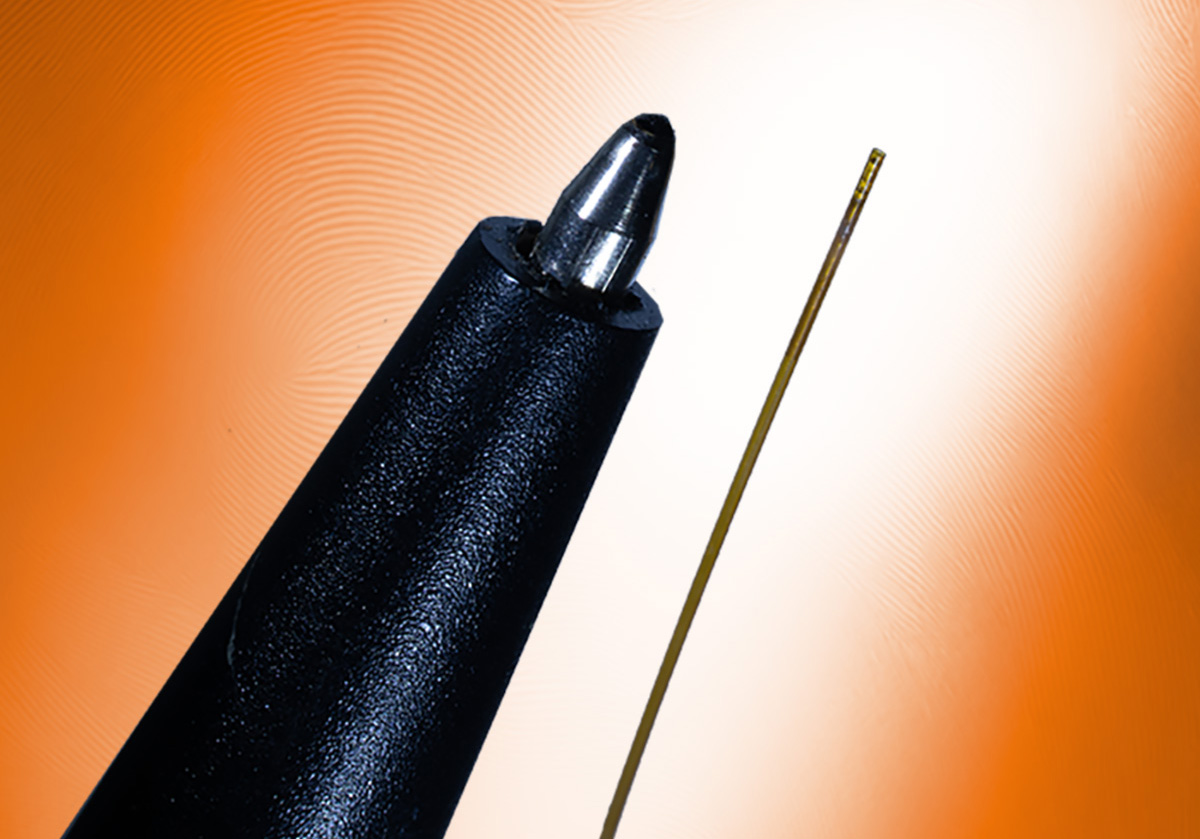

catheter + pen

PROBE & PEN TIP - SIZE COMPARISON

TEMPERATURE PROBES SIZED FOR SMALL TO MEDIUM ANIMALS

1.3 FRENCH – RATS, GUINEA PIGS
(0.42 mm outer diameter)

  • Records temperatures up to 45•
  • Cable length: 1.5 m (customisable up to 10 m). Extension cables also available.
  • Fibre optic type: GaAs for high thermal strength
  • Connector: Popular, reliable ST connection

2 FRENCH – RABBITS, PIGS
(0.67 mm outer diameter)

  • Records temperatures up to 45•
  • Cable length: 1.5 m (customisable up to 10 m). Extension cables also available.
  • Fibre optic type: GaAs for high thermal strength
  • Connector: Popular, reliable ST connection

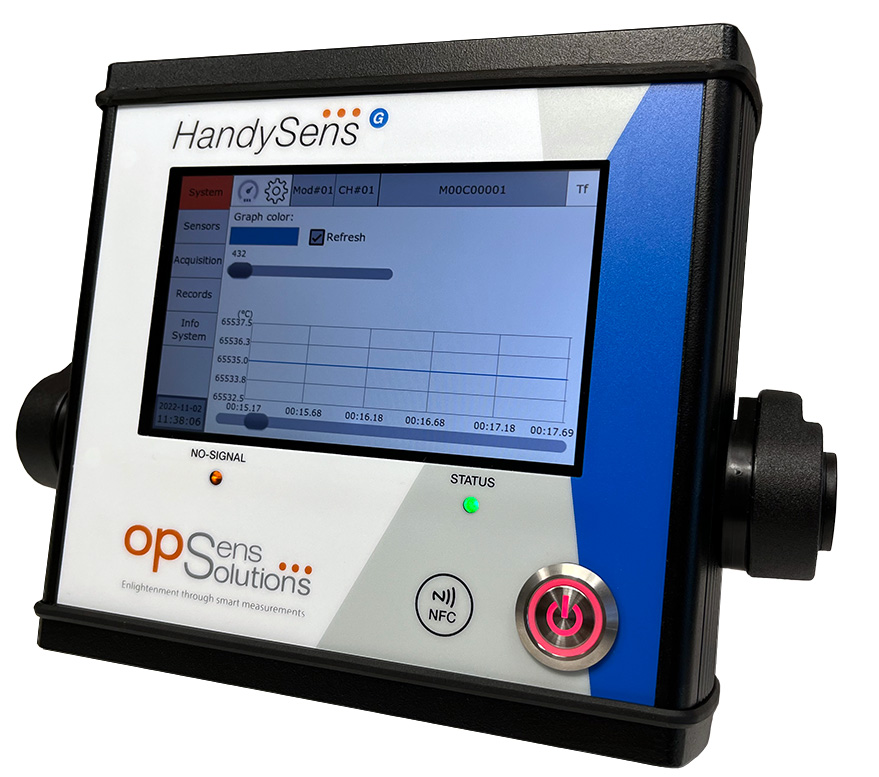

HandySens G Single Channel Signal Conditioner

A compact, high-performance signal conditioner designed for use with Opsens’ fibre optic temperature probes. Built on proven SemiConductor BanGap (SCBG) technology, it delivers accurate, stable, and interference-free temperature measurements — even in harsh or electromagnetically noisy environments such as MRI or RF applications.

Key Features

  • Compact, rugged, and battery-operated for portability

  • 5.0″ touchscreen for intuitive control and live data display

  • Sampling rate up to 250 Hz for responsive monitoring

  • Ethernet 10/100 Base-T and USB interfaces for flexible connectivity

  • 32 GB internal storage for remote or extended data logging

  • Fully immune to EMI, RFI, and high-voltage environment

  • Supports Opsens temperature probes
HandySens-G
